This page is written for the person signing the purchase order, not the person reading a spec sheet. It walks through what the Wisdom Zombies cabinet (item JX-WS01) asks of your floor plan, your power drop and your attendant rota, and how to model payback before you commit. If you are evaluating a kids water gun shooting game for a family entertainment centre, indoor playground or park hall, the sections below cover placement, session throughput, pricing tiers and factory buying terms. It also shows how a single amusement park kids game machine settles into an existing redemption mix without cannibalising the cabinets you already run.
Every figure below is quoted from the JX-WS01 product page. The right-hand column translates each one into the question an operator should ask before the machine lands.

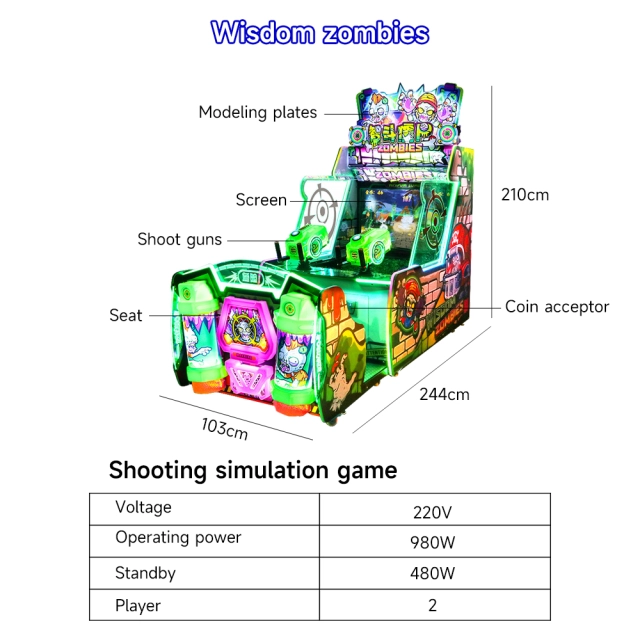

| Specification (JX-WS01) | What this means for your venue |
|---|---|
| Item No. / model nameJX-WS01 · “Wisdom zombies” | Quote both the item number and the model name on your enquiry so pricing, manuals and spare parts are matched to the exact cabinet. |
| Overall size2440 × 1030 × 2100 mm | Just under 2.5 m wide and about 1 m deep — plan it as a two-player station along a wall or low partition rather than a free-standing floor island. |
| Screen size43 inch | Large enough for two players to read the same scene from a standing position, which is what makes the shared-target co-op play on the product page work. |
| Power980 W working · 480 W standby | Working draw sits in the range of a mid-size redemption cabinet. Check circuit loading if you are daisy-chaining machines, and count standby draw into long trading days. |
| Voltage220 V | Confirm your site supply and any transformer requirement with the supplier before the electrical plan is signed off. |
| Players2 | Two gun stations run in the same cycle, so build throughput maths on session length rather than single-seat turns. |
| Game content / scenes6 games · 6 scenes | Repeat play partly depends on scene variety. Rotate which scene you feature on signage so regular visitors notice something new. |
| Game typeChildren's parent-child simulation | Positions the cabinet for family audiences — site it where an adult can stand beside a child without blocking the aisle. |
| MaterialBlister + hardware | Moulded panels over a hardware frame. Ask the supplier for the recommended cleaning and panel-care routine for your attendant team. |
| Package size1970 × 1170 × 1720 mm · 1070 × 940 × 1030 mm | Two cartons per machine. Walk your delivery route first — door widths, lift dimensions and corridor turns decide whether the drop is a 20-minute job or a two-hour one. |
| Package quantity2 units per package | Multi-unit orders are packed two to a package, so plan storage space and unloading labour accordingly. |
Start with the 2440 × 1030 mm footprint, then add the space the footprint does not show: the queue lane, the parent standing behind each player, and the gap your technician needs to reach the back of the cabinet.

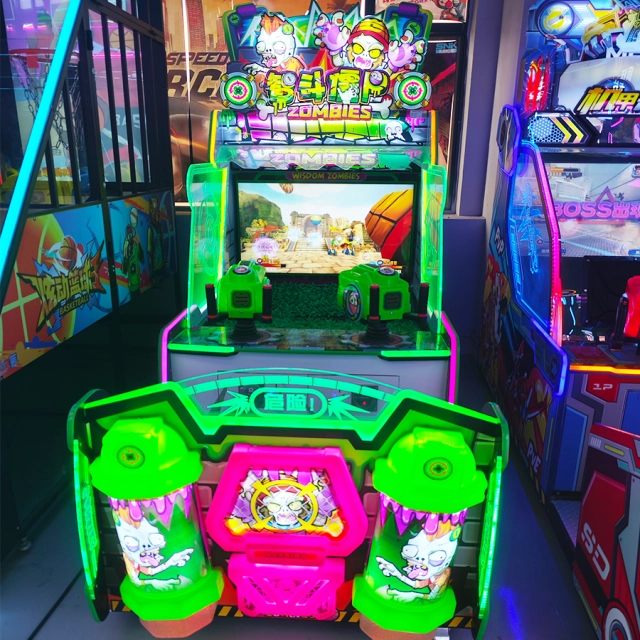

Set the cabinet at the edge of the kids zone rather than the centre, so the queue forms inside the zone and the parent line stays with the other family attractions. The compact structural layout described on the product page is what makes a wall-side position workable.
Buyer decision: treat it as a fixed installation — confirm the power drop at the final spot before delivery day.Hall traffic arrives in waves, so position the machine where two players can step off quickly and the next pair can step on. With 2 players per cycle and 6 scenes to rotate, the cabinet carries repeated visits across a full trading day.
Buyer decision: order in even numbers where possible — cartons ship 2 units per package, which simplifies freight and storage.This is the tight-space scenario. A 2440 mm width has to pass through your entry route before it reaches the corner, so measure the narrowest point on the way in, not just the final position.
Buyer decision: measure doors, lifts and turns first; if the route is tight, ask the supplier for the packed carton breakdown before you order.Each machine ships in two cartons, and packages hold 2 units — a detail that changes how you plan storage, unloading labour and container consolidation.
This section is a worksheet, not a forecast. The machine's earning power depends on your footfall, your session price and your site share — three numbers only you can fill in.
The published how-to-play sequence is coin-operated: insert a coin, choose a level, then shoot with the water gun. This is the simplest setup and the one the product page documents.
If your venue already runs a token economy, ask the supplier how the coin mechanism aligns with your token size so you keep one currency across the floor.
Venues moving to card systems should raise this at enquiry stage, along with your peak and off-peak price points, so the payment configuration is agreed before production.
| Break-even worksheet | Illustrative example | Your figure |
|---|---|---|
| Price per play | 1 credit | — |
| Average session length | 3 minutes | — |
| Plays per hour (mid-week) | about 12 | — |
| Trading hours per day | 10 | — |
| Trading days per month | 26 | — |
| Gross plays per month | about 3,120 | — |
| Less site share, power and maintenance | set your own percentage | — |
| Machine cost | request a quote | — |
| Simple break-even | machine cost ÷ net monthly credits | — |
The example figures above are arithmetic aids for your own modelling. They are not a quote, a forecast or a performance promise from the supplier. Replace every line with your own venue data and treat the result as one scenario among several.
Repeat play is what turns one cabinet into a permanent position on your floor plan. These are the product-page features that support that — each one mapped to the venue behaviour it affects.
In play, players form a guardian team to defend a base, aim the water gun at cartoon targets, take on simple missions, choose routes together and then compare contribution scores at the end of the round — a loop that rewards a second coin rather than a single attempt.
Buying direct from the manufacturer changes what you can ask for — branding, game content and packaging are negotiable, but only if you raise them before production starts.
Send your venue type, the number of units you are considering and any branding or customisation requirements. Pricing is quoted per enquiry — the product page does not display a list price.
Contact Us for a QuoteEmail: info@gzjxgames.com
Phone: +86 199 2564 3226
Company: Xiongzhiye Animation Technology Co., Ltd.
Address: No. 401, 37 Huancun East Road, Xinshuikeng Village, Dalong Street, Panyu District, Guangzhou City, Guangdong Province, China
Share your floor plan, the number of units you are considering and your customisation needs, and the factory team will come back with pricing, lead time and a delivery plan. Full technical details are on the JX-WS01 product page.
Keep adjacent product options together for a faster catalog comparison.
Reliable, precise racing arcade machine for sale and durable arcade games for sale with advanced arcade racing game technology.
View product
Name: Destruction Assault Music: Yes Voltage: 220V Size: 1900 * 2600 * 2350mm Type: Shooting category Power: 450W Applicable number of people: 3 people/unit Product Material: Vacuu
View product
Durable arcade horse racing game machine from trusted arcade machine manufacturers, ensuring precise gameplay and reliable performance.
View productthe jx-ws01, sold under the model name wisdom zombies, is a two-player coin-operated shooting cabinet where children aim a water gun at cartoon zombies on a 43-inch screen. the product page describes it as a children's parent-child simulation game, so it suits family venues, indoor playgrounds and kids zones rather than adult action arcades.
the listed size is 2440 × 1030 × 2100 mm, the screen is 43 inch, working power is 980 w with 480 w on standby, voltage is 220 v, and the cabinet supports 2 players with 6 games and 6 scenes. the material is blister plus hardware, the item number is jx-ws01, and packages hold 2 units.
start with the 2440 × 1030 mm footprint, then add a queue lane for two players plus waiting parents and a gap behind the cabinet for service access. check the delivery route too: the package sizes are 1970 × 1170 × 1720 mm and 1070 × 940 × 1030 mm, shipped as 2 units per package.
the product page lists 220 v, with 980 w working and 480 w standby. if your venue runs on a different supply, confirm the correct configuration with the supplier before ordering, and check circuit loading if the cabinet will share a circuit with other machines.
the published how-to-play steps describe coin operation: insert a coin, choose a level, then shoot with the water gun. the price per play is set by the operator, so you can test coin, token or card values. ask the supplier how the payment setup can be matched to your venue's system.
yes. the supplier advertises oem/odm, one-stop service and 24/7 online support, with more than 50 self-developed game console platforms available for customisation. send your venue type, unit quantity and any branding or artwork requirements through the contact page to receive pricing, lead time and shipping details.
